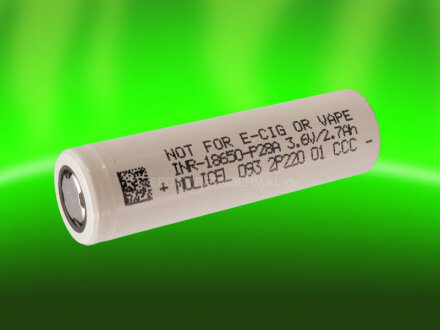

Molicel INR18650-P28A, 2800mAh 35A Lithium-Ionen-Akku
Molicel was one of the pioneers of the lithium-ion industry. Molicel batteries are used wherever extreme operation and high reliability are required, customers include NASA, DASA, Dyson, Boeing, etc. This high current cell is usable with a constant load of 35A (constant) with temperature control up to 80°C. Current draws up to 70A pulse are realistic with the cell.
The Molicel batteries are very well suited for the Tinymight 2 precisely because of their power.
Features:
| Capacity |
2800mAh 10.3 Wh |
| Minimum capacity |
2600mAh 9,56 Wh |
| Nominal voltage |
3,6V - 3,7V |
| Charging end voltage |
4,2V ± 0,05 |
| Protection |
none |
| Pluspol |
flat (Flat Top) |
| Diameter |
18,45 mm ± 0,15 mm |
| Height |
65, mm ± 0,2 mm |
| Weight |
48 g ± 1 g |
| Loading method |
CC-CV |
| Operating temperature charging | .
0 °C - 60 °C |
| Operating temperature discharge |
-40 °C - 60 °C |
Other features:
Lithium-ion batteries are thermally stable and are not subject to memory effect. They operate on the basis of lithium and are characterized by a high energy density.
Safety Instructions:
Lithium ion batteries may only be operated and charged with protective electronics! Use only by competent persons! Incorrect handling / use can lead to a short circuit with fire development or an explosion.
Notes on battery disposal:
In connection with the sale of batteries or the supply of devices containing batteries, we are obliged to inform you of the following:
You are legally obligated to the Rückgabe of used batteries as an end user. You can return used batteries that we carry or have carried as new batteries in the range, free of charge to our store (Karl-Kunger-Str. 28in 12435 Berlin). The symbols shown on the batteries have the following meaning:
The symbol of the crossed-out garbage can means that the battery must not be placed in the household garbage.
General notes:
Charging Lithium Ion batteries requires a special charger that charges the batteries using a special charging method. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or the number of charging cycles (possibly up to double). Only lithium ion chargers may be used for charging.
Scope of delivery:
1 x Molicel INR18650-P28A, 2800mAh 35A Lithium-Ionen-Akku
What do I need to know about lithium-ion batteries? Please read our safety instructions.
| Item information |
Value |
| Item weight: |
0,05 kg
|
| Dimensions
( Length × Width × Height ):
|
1,80 × 1,80 × 6,50 cm |
