CrossingTech 3D Ceramic Heater Atomizer – Standard & XL
The latest 3D ceramic heating systems from CrossingTech deliver even thermal distribution and clean results—available as rebuildable (serviceable) or non-rebuildable (low-maintenance), in Standard and XL. Matching diffusers (replacement coils) are offered for both Standard and XL.

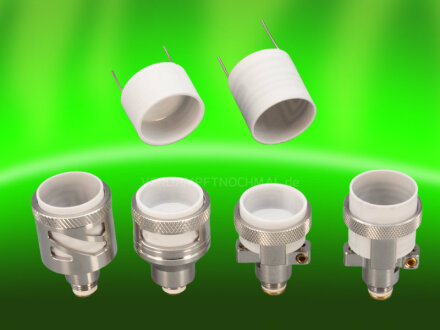

Variants
-
Ceramic Heater Atomizer – non-rebuildable
-
Ceramic Heater Atomizer – rebuildable (RDA deck with clamps)
-
XL Ceramic Heater Atomizer – non-rebuildable
-
XL Ceramic Heater Atomizer – rebuildable (XL 3D, side & base heating)
-
Diffuser (replacement coil) – Standard
-
Diffuser (replacement coil) – XL
Key Features
-
Full ceramic + stainless steel (Standard RDA): minimal wall contact for accurate heating; copper screws reduce stress on heater legs.
-
XL 3D (side & base heat): larger capacity, higher vapor output, fewer splashes thanks to taller walls.
-
Rebuildable: replace the heater; burn-off cleaning on a box mod is possible (see notes).
-
Non-rebuildable: convenience swap—unscrew the old atomizer, screw in the new one.
Compatibility (per manufacturer)
-
Standard (heater/atomizer): Core 2.0 (RDA), Nice Dreamz RDA; V5 heater compatible.
-
XL Heater Only: Core XL,V5 Micro Diffuser; Core 2.0 or Nice Dreamz RDA housings (as heater upgrade).
-
XL Atomizer (reb./non-reb.): Core XL, Core 2.1, TUG 2.0, CUB.
Housing note: XL heaters do not fit non-rebuildable Core 2.1/2.2 housings. Core 2.0/Nice Dreamz RDA can be upgraded to the XL heater.
Use & Temperature (excerpt)
-
Box mod (V5 Micro Diffuser/CUB): TCR 220 · ~45 W · adjust target temp as desired (≈190–250 °C).
-
Core 2.0: XL heaters run slightly hotter at the same settings—use blue/green/white and start drawing sooner if material toasts.
Cleaning & Care
-
After each dab: wipe the dish with a cotton swab.
-
Burn-off (Rebuildable): mount in an RDA base/heat sink on a box mod (~36–38 W, ~1–2 min). Do not overdo it to preserve lifespan.
-
No burn-off in non-rebuildable housings: risk of damaging the silicone spacer.
Important: No hot starts. Always load concentrates cold. Dropping cold material onto a hot ceramic heater can cause cracking.
Assembly (Rebuildable)
- Make sure the small clamp screws on the heater legs are snug but not overtightened (avoid cutting the wire).
- Tighten the RDA bottom flathead bolt only enough to avoid damaging the ceramic spacer.
Scope of delivery:
- 1 x CrossingTech Ceramic Heater Atomizer (Choose your version above)
