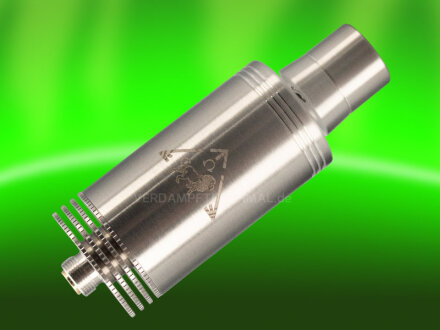

Divine Crossing XL V5 Rebuildable Concentrate Heater
The Divine Crossing XL V5 is an upgraded version of the original V5, featuring the larger XL 3D Ceramic Heater. This XL setup is designed for both small and large dabs, offering superior vaporization efficiency due to its taller heater walls. This not only improves extraction but also reduces the need for frequent cleaning, as there is less concentrate splashback.
New XL Features:
- Upgraded taller all-steel cap, eliminating the glass windowed cap.
- Available in Stainless Steel.
- Enhanced heat retention and airflow efficiency.
Advanced Heating Technology
The XL V5 Micro Diffuser features a heated ceramic cup with elements inside the base and walls, ensuring accurate temperature control (±10°C). This provides a uniformly heated dabbing surface for pure, flavorful vapor. The heater is mounted on a stable Zirconia ceramic base, secured to a stainless steel foundation for optimal performance.
Why Choose the XL V5?
- Accurate temperature control for efficient extraction.
- All-ceramic heated cup for smooth, clean vapor.
- Built-in heat sink to prevent overheating.
- Compatible with micro-dosing and large dabs.
How to Use
- Ensure coil screws are firmly secured.
- Set up your mod with the recommended settings (see below).
- Load the ceramic cup with a rice-sized dab of concentrate.
- Hold the fire button (or use auto-fire mode on compatible mods).
- Start inhaling at 160°C for maximum flavor and effect.
- Let the heater cool briefly before cleaning.
Recommended Settings
-
TCR Mode: 45W, TCR 200, Temp 200-280°C
- Cold coil resistance: 0.46 - 0.51Ω
- Heat time: Approx. 12 seconds
Note: The XL V5 is not a standalone vaporizer and requires a box mod as a power source.
Cleaning & Maintenance
- Keep the temperature below 290°C for cleaner operation.
- Wipe the heater with a q-tip after each session.
- Perform burn-off cycles at 37W for deep cleaning.
- Avoid torch cleaning the Zirconia spacer to prevent cracks.
Specifications
- Material: Stainless Steel & Ceramic
- 22mm OD Base / 24mm OD Airflow Cap
- 510 threaded for Mod Box compatibility
- ROHS certified
Coil Replacement Guide
- Loosen the four screw bolts securing the coil legs.
- Remove the old coil and match the new coil’s leg length.
- Insert the new coil legs and tighten the screws evenly.
- Take a cold resistance reading and lock it if needed.
- Perform a burn-off cycle at 37W before use.
Scope of delivery:
- 1 x V5 diffuser base with copper screws
- 1 x Installed XL 3D Heater
- 1 x Zirconia spacer
- 1 x Airflow cap with vortex design & heat sink
- 1 x Spare heater, screws, o-rings, and Allen key
- 1 x Dab tool
- 5 x Q-tips
- 2 x Alcohol pads
- 1 x User Manual
Upgrade your vaping experience with the Divine Crossing XL V5 for unparalleled efficiency, flavor, and performance!
